AMPCO-TRODE® 10

AWS A5.6 – ECUAL-A2

AWS A5.7 – ERCUAL-A2

Description and Application

Aluminum bronze is the most versatile welding electrode in this family of alloys. It is intended for deposition with electric arc welding processes.

AMPCO-TRODE® 10 will weld and join many ferrous and nonferrous metals and combinations of dissimilar metals. These metals include the more weldable grades of cast iron, high and low carbon steels, copper, bronzes and copper-nickel alloys.
Applications for AMPCO-TRODE® 10 include: building up bearing surfaces, joining and fabricating copper alloys, overlaying for resistance to corrosion and erosion and general maintenance and repair welding.

$36.20$352.50

Clear


In stock
Low stock
No stock

Typical Applications

Cast iron,

Cast iron,

Malleable iron,

Cast iron to steel,

Cast iron to bronze,

Steel to bronze,

Aluminum bronze,

Silicon bronze,

Manganese bronze,

Cupro-nickel,

Copper to steel,

Bearings,

Bushings,

Pump housings,

Condenser boxes,

Hydraulic pistons,

Brake drums,

Tractor gear housings,

Idler pulleys,

Pickling hooks,

Paper mill rolls,

Motor bases,

Tin plate mill rolls,

Impellers,

Valve seats,

Gears,

Mixer arms,

Press rams,

Ship propellers,

Lance heads

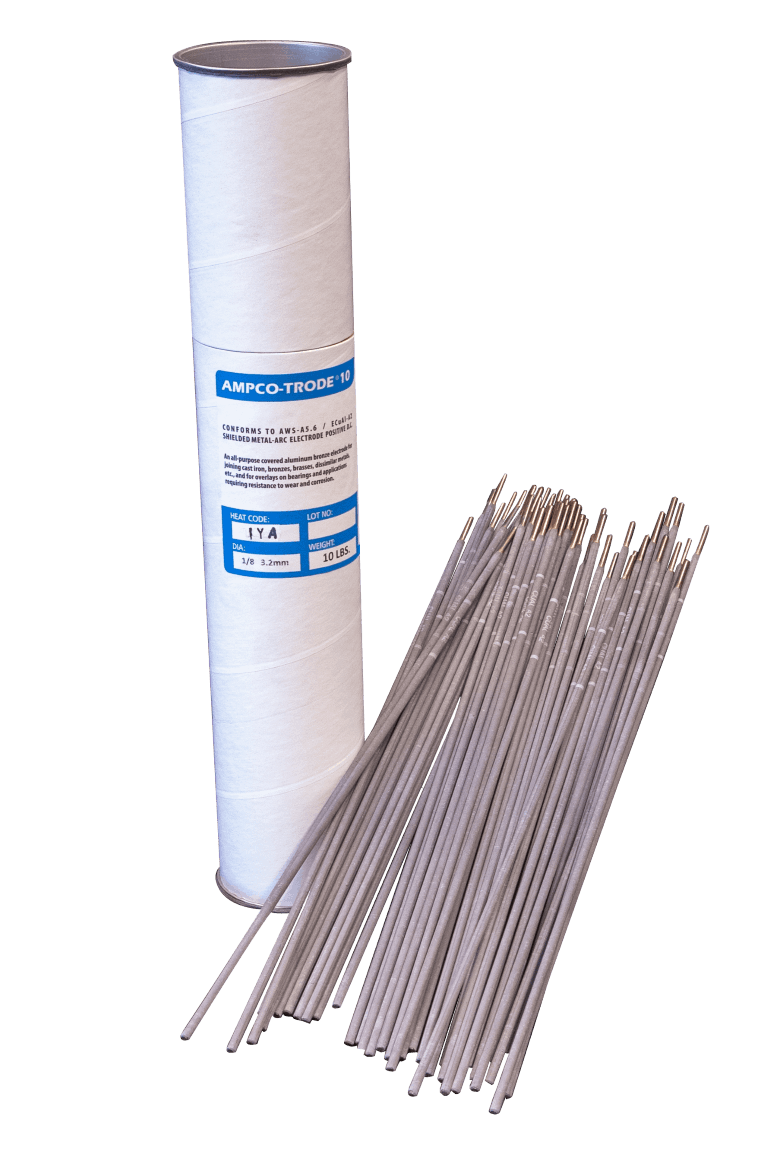

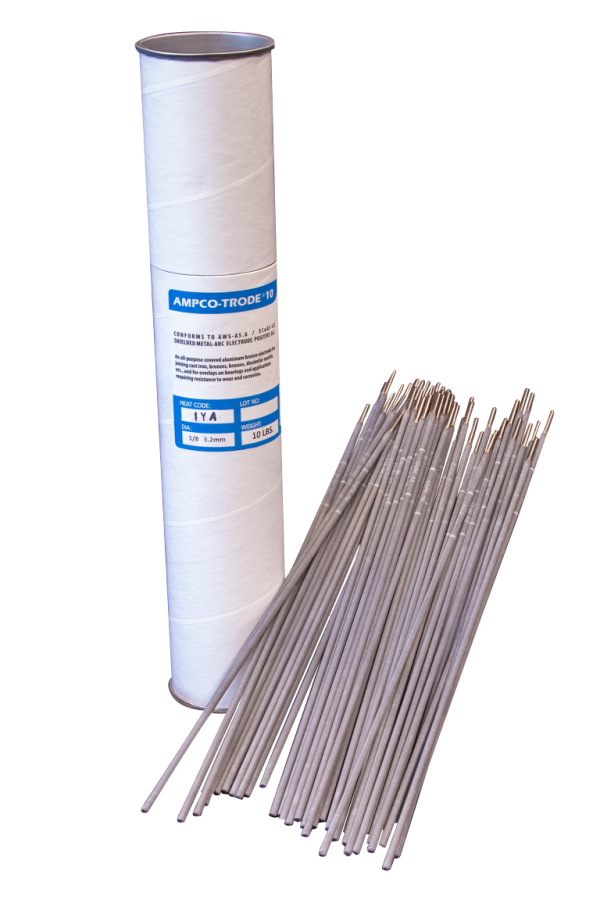

AMPCO-TRODE® 10 Coated

Limiting Chemical Composition
% (deposited weld metal)
Copper* Balance
Aluminum 6.50 – 9.0
Iron 0.50 – 5.0
Silicon 1.5 max.
Others 0.50 max.
* including silver
Mechanical Properties
(Nominal all-weld metal values)
Tensile Strength ksi 77 (531 MPa)
Yield Strength ksi 35 (241 MPa)
Elongation % in 2″ (51 mm) 27
Reduction of Area % BHN (3000kg.) 27
1/4″ (6.4 mm) deposit 119

Specifications

AWS A5.6 Class E CuAl-A2
ASME SFA 5.6 Class E CuAl-A2

AMPCO-TRODE® 10 Bare

Limiting Chemical Composition
% (deposited weld metal)
Copper* Balance
Aluminum 8.50 – 11.0
Iron 0.50 – 1.50
Silicon 0.10 max.
Others 0.50 max.
Mechanical Properties
(Nominal all-weld metal values)
Tensile Strength ksi 779 (545 MPa)
Yield Strength ksi 35 (241 MPa)
Elongation % in 2″ (51 mm) 28
Reduction of Area % BHN (3000kg.) 28
1/4″ (6.4 mm) deposit 140

Specifications

AWS A5.7 Class ER CuAl-A2
ASME SFA 5.7 Class ER CuAl-A2

*Hardness will vary depending on quality of the weld and experience and knowhow of the welder.

Document Download

AMPCO-TRODE® 10 Technical Data Sheet
